Battery review: Dinogy Ultra Graphene 2.0 4S 1500 mAh 80 C

Publiziert von Nils Waldmann

am

After reviewing the great Dinogy Graphene 2.0 packs, the time has finally come and I received samples of the newest battery product from Dinogy. This review is looking at the 1500 mAh version of the all new Dinogy Ultra Graphene 2.0 4S 80 C pack.

How to use charts:

This battery review contains some charts which can be interactively utilized. You are able to:Attention

  1. Highlight any value just by clicking on the corresponding key below the chart.
  2. Hover over any value / line inside the chart to get precise readings.
  3. Right axis is always current.

Have fun! :)

Appearance

The new Dinogy Ultra family* not only rates up to 80 C (instead of 70 C), it also comes in a superb looking orange shrink wrapping. I am very happy to see though, that they decided to continue using the cool looking, now bright yellow, honey comb-style materials on the sides. On the back you find a sticker that provides all the important information how to handle the battery. I still really appreciate to see this stuff printed onto the pack. A lot better than giving out a small piece of paper as many other manufacturers tend to do. The packs come in a high quality card box. The pack itself is packed in bubble wrap.

Technical Design

The Dinogy Ultra Graphene 2.0 80 C pack* is a standard 4S1P config flight pack for high power use. It utilizes the new generation graphene cell chemistry. An extra layer of carbon particles is added to minimize internal resistance and hence maximize possible current draw. The newest version now is rated up to 80 C constant. We will see about that later.

Build Quality: Very good. Pack feels very well made on the outside. Connection terminal looks solid. The bright yello honey-comb material feels like it offers good protection on the sides. The orange coloring looks pretty flashy, too – I like it. The golden sticker at the bottom adds to the overall quality feel of the product.

Plugs: The Dinogy pack comes with standard XT60 connectors* equipped – again in black color.

Cables: L&E uses 12 AWG wires on this packs. The high flexible silicon layer is rated up to 200°C. Cable length is about 7.5 centimeters.

Balacing plugs: Standard XT-system*. Balance wires are very short (3 cm) which is a benefit in terms of getting them out of the prop-range on the aircraft. Main power line are connected to the top, balancer wires are coming out at the bottom of the pack.

Technical Details

Manufacturer L&E Battery Industrial* dinogy-ultra-graphene-2-0-4s-1500-mah-80c-front-view

dinogy-ultra-graphene-2-0-4s-1500-mah-80c-side-view

dinogy-ultra-graphene-2-0-4s-1500-mah-80c-terminal

dinogy-ultra-graphene-2-0-4s-1500-mah-80c-top-view

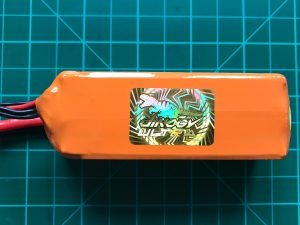

dinogy-ultra-graphene-2-0-4s-1500-mah-80c-bottom-view

(Click to enlarge.)

Type Dinogy Graphene 2.0 80C
Cell chemistry Lithium Polymere (LiPo)
Cell type Dinogy Graphene enabled chemistry
Cell count 4
Pack configuration 4S1P
Capacity 1500 mAh
Max. Charge Current  7.5 A
Max. Discharge Current
Continuous
Burst
120 A
? A
Weight
w/o plugs
with plugs

ca. 204 grams
Measurements
as listed
measured
33 x 37 x 90 mm
32 x 35 x 92 mm
Price Amazon.de*
Note This battery has been directly donated by the manufacturer / distributor for review purposes.

Break-in documentation

The battery followed the standard break-in-process: The pack is charged at a rate of 1C until CV-phase ends with current of 1/10C. The break-in phase consists of four charging cycles at 1C and four corresponding discharges at 1 C / 4C / 10C and 20 C.

Anomalies: No anomalies during break-in.

Internal resistance measurements during break-in phase

Cycle Cell 1 Cell 2 Cell 3 Cell 4 Total
After first charge 1.5 1.6 1.9 1.8 6.8
After second charge 1.2 1.5 1.2 1.4 5.3
After third charge 1.7 1.8  2.0 1.9  7.4
After fourth charge  2.2  0.9  2.6  1.8  7.5

Charging process

Google Docs

Mit dem Laden des Diagramms akzeptieren Sie die Datenschutzerklärung von Google.
Mehr erfahren

Diagramm laden


CV-Phase is very short on this cell type. Balancing in normal mode took 1:10 min. Cell drift during charge was unobtrusive. This is for 1C charge (1,5 A).

Load Testing

The main part of this battery test will consists of different load test settings showing the battery performance. Constant load testing is used to judge the advertised C-ratings as well as look at cell drift under high loads. We also check on internal resistance once more. Next up is the dynamic current test, which simulates a „real“ flight with changing (=dynamic) loads. For test methodology please check the dedicated methodology page!

Constant Load Testing

Constant load testing follows a certain load pattern of different constant currents. Base load is 10 C. Current pulses at 50 C, 35 C, 20 C and 30 C are maintained for time intervals between 10 and 20 seconds. For more details please refer to the test methodology page.

Google Docs

Mit dem Laden des Diagramms akzeptieren Sie die Datenschutzerklärung von Google.
Mehr erfahren

Diagramm laden


Capacity Usage

During this test the pack delivered 1132 mAh. This is 75,5 % of nominal capacity. A very good result.

Average cell voltages

The following table lists the average voltages per cell, of the total pack, as well as the averaged value per cell as fraction of total voltage during phase of active load.

Cell 1 Cell 2 Cell 3 Cell 4 Total Average per cell
Avg. Voltages 3.764 V 3.777 V 3.781 V 3.764 V 15.085 V 3.771 V

Just looking at average values the Dinogy pack performs good. All cells stayed well above 3,7 V on average. An average value above 3,74 V / cell can be considered very good.

Focus Voltages

Exceptionally interesting when testing a battery under a constant load for a longer period of time: the lowest voltage per cell just before load impulse is disabled. On top, you should have look at voltage recovery rate, that is: how fast do cell voltages rise again once load impulse is cut.

Phase Cell 1 Cell 2 Cell 3 Cell 4 Total
End of 50 C 3.648 V 3.658 V 3.677 V 3.671 V 14.654 V
End of 35 C 3.589 V 3.601 V 3.610V 3.608 V 14.407 V
End of 20 C 3.369 V 3.507 V 3.519 V 3,440 V 13.835 V
End of 30 C

Voltage sag is very low on the Dinogy Ultra 1500 mAh pack. No cell went below 3,5 V/cell benchmark on first two load cycles.

Average voltage recovery per second

Those values are specific to the test setting and not valid for the pack in general! Still they allow an estimated guess about how fast voltages rise again after current spikes.

Cell 1 Cell 2 Cell 3 Cell 4 Total
Avg. Recovery 0.0251 V / s 0.0194 V / s 0.0175 / s 0.0190 V / s 0.081 V /s

Voltage recovery is quick for the new Graphene 2.0 1500 mAh 80 C battery*.

IR-Measurement

IR measurement is conducted using the four current pulses. Resistance for each cell is calculated in all four discharge phases. Shown values are averaged to cancel out different temperature points due to different discharge states during measurements.

Cell 1 2 3 4 Total
Resistance [mΩ] 2.21 2.08 1.92 2.11 8.32

Interpretation: The internal resistance of 2.08 mΩ average per cell indicates a „true“ C-rating of around  44 C (65.8 A). This is on the conservative side and represents a current draw that will make the pack last for a long time. Looking at cell one it becomes visible that matching on this cell is a little off. It clearly is the weakest cell within this pack. Still overall performance can be described as very high.

Google Docs

Mit dem Laden des Diagramms akzeptieren Sie die Datenschutzerklärung von Google.
Mehr erfahren

Diagramm laden

Cell drift under load

Discharge Phase 50 C 35 C 20 C 30 C
Max Cell drift (V) 0.034 V 0.032 V 0.233 V

Cell drift is very low on the new Dinogy Graphene 2.0 80 C* packs during main discharge phase. Cell 1 is visible weaker to the end of the discharge cycle and creates the drift difference at the very end of the test.

Key Temperature Facts

temperature-development-dinogy-ultra-graphene-2-0-4s-1500-mah-80c

Temperature Development

Google Docs

Mit dem Laden des Diagramms akzeptieren Sie die Datenschutzerklärung von Google.
Mehr erfahren

Diagramm laden

Max. temp during discharge was around 50.9 °C on top of pack. Note that heating of stressed LiPo packs will continue for some more time even when load is cut.
Market Comparison

The following chart shows all reviewed LiPos in the same product segment for direct comparison of performance. Higher values under load are better.

Google Docs

Mit dem Laden des Diagramms akzeptieren Sie die Datenschutzerklärung von Google.
Mehr erfahren

Diagramm laden

Constant 25 C Discharge

Pretty much a standard benchmark in the LiPo industry.

Google Docs

Mit dem Laden des Diagramms akzeptieren Sie die Datenschutzerklärung von Google.
Mehr erfahren

Diagramm laden

Cut-Off /warning value for this battery should be chosen 3.5 V minimum. After this point voltage drops quick. The battery provided 1141 mAh (76,1 %) during the 25 C discharge. One of the best results so far.

Market Overview

Comparison of different reviewed 1500 mAh batteries under 25 C load.

Google Docs

Mit dem Laden des Diagramms akzeptieren Sie die Datenschutzerklärung von Google.
Mehr erfahren

Diagramm laden

Dynamic Load Testing

The dynamic load testing setting consists of two separate discharge scenarios that have been developed of two different real-life FPV flights. Pattern one represents a high speed low proximity flight around the open field with some hovering to the end. Average load is around 22 A. Second pattern is a free-style flight around trees in the park with some current spikes near 70 A. Average load on this flight is around 13 A due to longer floating periods.

Google Docs

Mit dem Laden des Diagramms akzeptieren Sie die Datenschutzerklärung von Google.
Mehr erfahren

Diagramm laden

Google Docs

Mit dem Laden des Diagramms akzeptieren Sie die Datenschutzerklärung von Google.
Mehr erfahren

Diagramm laden

Capacity Usage

During the test of pattern 1 the pack delivered 1154 mAh. This is 76.9 % of nominal capacity. Very good. In patter 2 testing 1124 mAh (74.9 %) could be used until first cell reached cut-off voltage.

Market Comparison

The following charts give an overview of all tested packs in the 1500 mAh class so far.

Google Docs

Mit dem Laden des Diagramms akzeptieren Sie die Datenschutzerklärung von Google.
Mehr erfahren

Diagramm laden

Google Docs

Mit dem Laden des Diagramms akzeptieren Sie die Datenschutzerklärung von Google.
Mehr erfahren

Diagramm laden

The last chart of this review sums up the usable capacity during all four load scenarios. Please note that this is only the capacity consumed by the electronic load! There are losses due to heating of the pack, which could be approximated (see testing methodology page). All four tests are cut when any cell goes below cut-off voltage of 3,3 V (or pack goes above 58 °C on any of the three probes). If you would push further and go down to 3,0 V/cell you will be able to squeeze out some mAh more, but at the cost of excessive heat generation and shortening of pack life-span. This value will most likely differ from what you get when flying on a quad as most people don’t monitor voltage on a per cell basis and therefore don’t even notice if voltage drops below 3,3 V/cell during punsh-outs (what’s not necessarily a good thing, though). For comparison, used capacity until 3,3 V/cell is reached is the base line in all battery reviews on Drone-Zone.de.



Google Docs

Mit dem Laden des Diagramms akzeptieren Sie die Datenschutzerklärung von Google.
Mehr erfahren

Diagramm laden

Conclusion

The all new Dinogy Ultra Graphene 2.0 4S 1500 mAh 80C battery* is a usual sized pack with a capacity to weight ratio of 7.35 mAh/g. As other graphene enabled packs this battery tends to be heavier than a „standard“ lipo. Build quality of this battery is excellent. The pack is rectangular shaped and keeps it shape under every load situation. No puffing what so ever! I personally like the fresh design combining the orange with the bright yellow honey-comb reflector materials at the sides. Looks even better than the predecessor’s light-grey to red coloring. Voltage stability is great on the Graphene 2.0 80C version. Cut-off should be chosen at 3,45 V/cell at the very minimum. The sticker on the pack tells you 3,4 V/ cell but this would mean to cut of throttle immediately after you hear your telemetry or buzzer complaining. Usable battery capacity is one of the best of all packs testes within the 1500 mAh class so far. Cell matching still can be improved as one cell (cell one) is noticeably weaker than the rest to the end of discharge cycle. The rating of 80C is a bit over the top, of course. I would rate this pack at very astonishing 44 C continuous, though. This allows you to pull around 65.8 A without having to worry about the packs health too much. More than enough head room for most of the applications out there and the best result in the 1500 mAh class so far. As you can see in the dynamic loads higher current spikes are handled well. Punch out out time!  For around 40 US-$ this pack is certainly not the cheapest battery you can buy. On the other hand the Dinogy Ultra Graphene 2.0 80 C 1500 mAh* version is one of the best batteries in this class I have reviewed so far. That’s not only true for performance, but also for overall product quality. It outperforms the already great Dinogy* Graphene 2.0 70C version without any question. In the end 40 dollars are still a very good deal for this pack if you are certain to utilize the potential.

Other packs of this line up tested:
